10 Years
| Ask Lasest Price | |
| Model Number : | FR5025CF |
| Price : | FOB |
| Delivery Time : | 15DAYS |
| Payment Terms : | TT |
| Brand Name : | LYLIGHT |
| Supply Ability : | 5000PCS/DAY |
Focus mount set up the correct distance between the lens of the stereo microscope body and the top of your sample, in order sample to appear in focus when looking through the microscope.
Microscope focus mount adjusted by Coarse and fine mechanism knob and tension adjustment.
Other name focus mount focusing bracket focus rack focus block focus holder

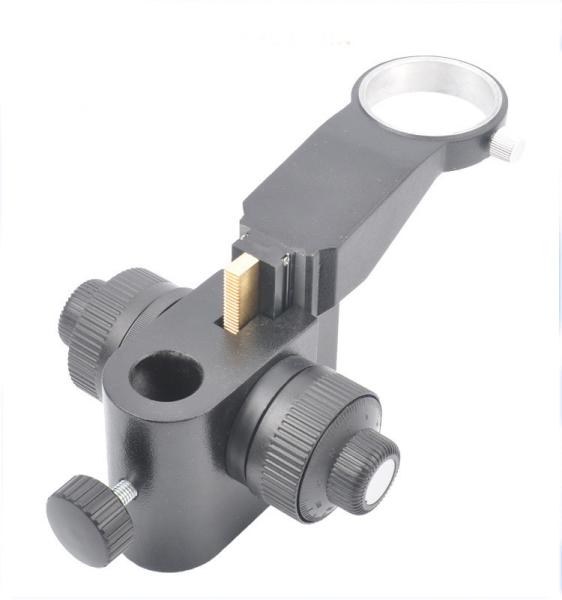

coarse and fine focus rack adjustment bracket (black)
Installation dimension (pole end): 25mm
Installation dimension (lens end): 50mm
Focus System Coarse & Fine
Feature:
requirements so we can assist with a smooth fit.
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder
Application Suitable for most brand microscope. binocular microscopes, trinocular microscopes, and video inspection systems.
Fine turning adjustment precision accuracy 0.02mm
|
|
